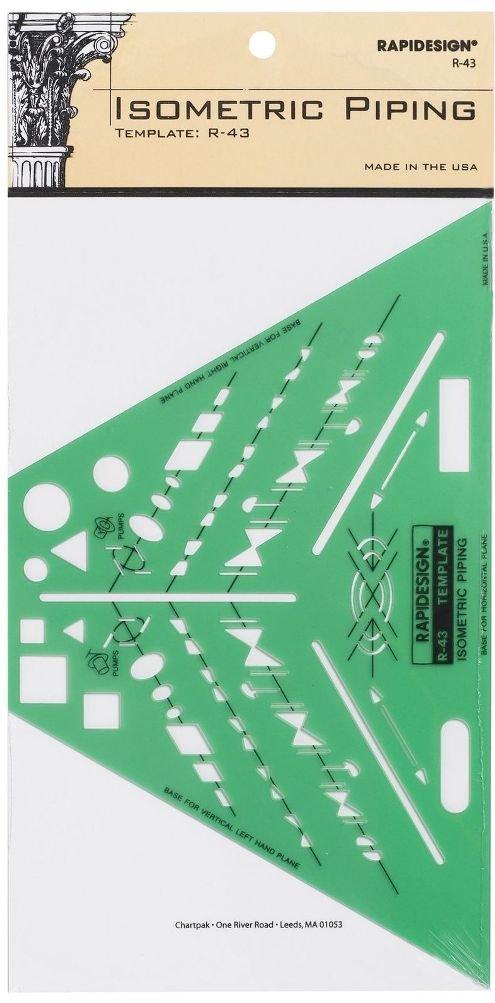

Rapidesign Isometric Piping Template, 1 Each (R43)

Brand: RAPIDESIGN

Color: green

Features:

• Facilitates easily understood perspective drawings in construction work of refineries, gas and water distribution systems, sprinklers and other complicated piping work

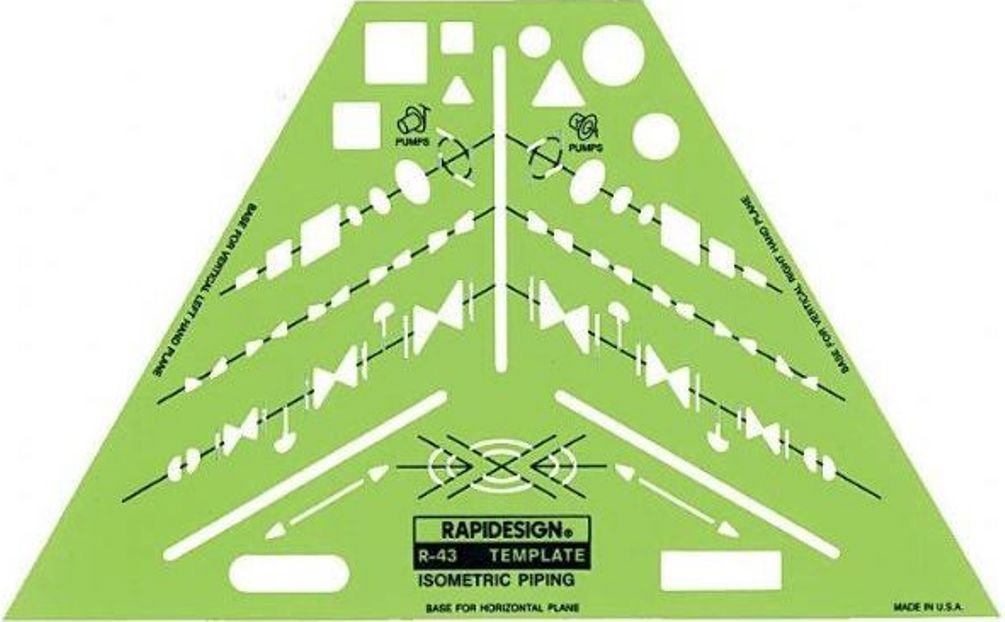

• Contains symbols of all components of piping systems; valves, flanges, elbows, reducers, caps and pumps
• Template can be tilted three ways: one each of the three planes of a perspective view
• Translucent green template
• Made in USA

model number: R43

Part Number: R43

Details: Rapidesign Isometric Piping Template facilitates easily understood perspective drawings in construction work of refineries, gas and water distribution systems, sprinklers and other complicated piping work. Contains symbols of all components of piping systems; valves, flanges, elbows, reducers, caps and pumps. Template can be tilted three ways: one each of the three planes of a perspective view. Made in USA. Rapidesign has the world's largest selection of drafting templates for architects, builders, engineers and graphic designers.

EAN: 0014173253583

Package Dimensions: 10.5 x 5.4 x 0.1 inches
