LIBO Complete RFID Access Control System Fingerprint Access Controller Keypad, DC12V Power Supply Transformer, 180kg/350lbs Electric Magnetic Lock with Door Switch Button, 125KHz ID Cards Keychains

Brand: LIBO Smart Home

Color: Blue

Features:

• 1, Introduction: This is a complete access control system, contain a fingerprint access controller, a power supply, a magnetic door lock, a switch button, and 10 pieces 125KHz RFID keychains. Off-line working, support to download attendance reports with U disk.
• 2, Fingerprint Access Controller: working frequency 125KHz, DC12V working voltage. Support to open door by fingerprint, password, RFID card, 1000 user capacity.
• 3, Electric Magnetic Lock: 180kg/350lbs holding force. NC mode: Locked when power on, unlocked when power off. Suitable for wooden door, metal door, glass door, PVC door, security door, etc.
• 4, Power Supply: power the access control system. Input: AC 110-260V / 50-60HZ, output: DC12V / 3A. Can control various type of single electric lock.
• 5, Exit Button: Made of fire retardant ABS plastic material. Working voltage is DC12V. With COM / NO wiring ports, suitable for various type of electric locks.

model number: F30-S+180KG

Part Number: Access Control Kit 01

Details: Fingerprint Access Controller
Model: F30-S
Display screen: 1.8 inch TFT LCD color screen

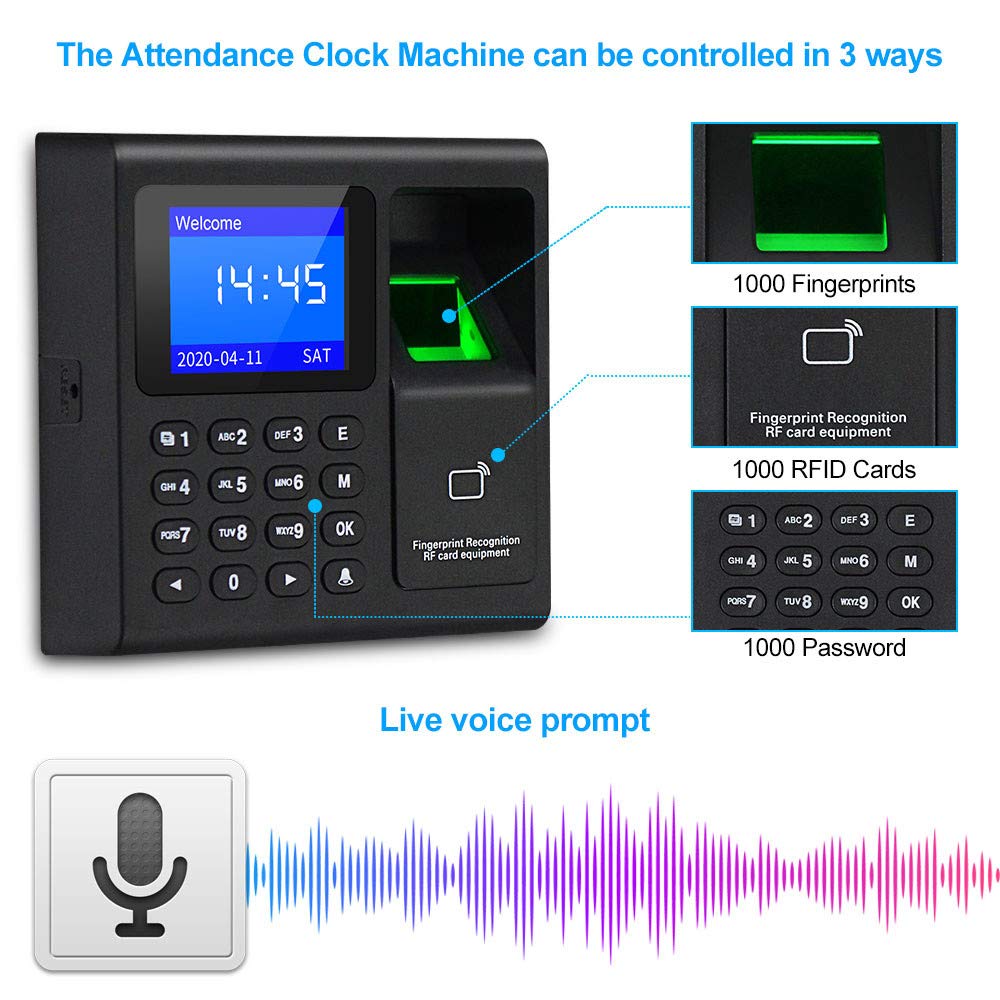

Verification methods: Fingerprint, password, RFID card
User capacity: 1000pcs fingerprints, 1000pcs password, 1000pcs RFID cards. Support 100,000 articles records.
Communication method: USB
Working RFID frequency: 125KHz, working with EM cards or EM compatible cards
Display language: English, Chinese (Adjustable)
Voice prompts: High-definition human voice
Identify speed: ≤ 1second
Identify angle: Full angle
Dimension: 90*90*28 mm

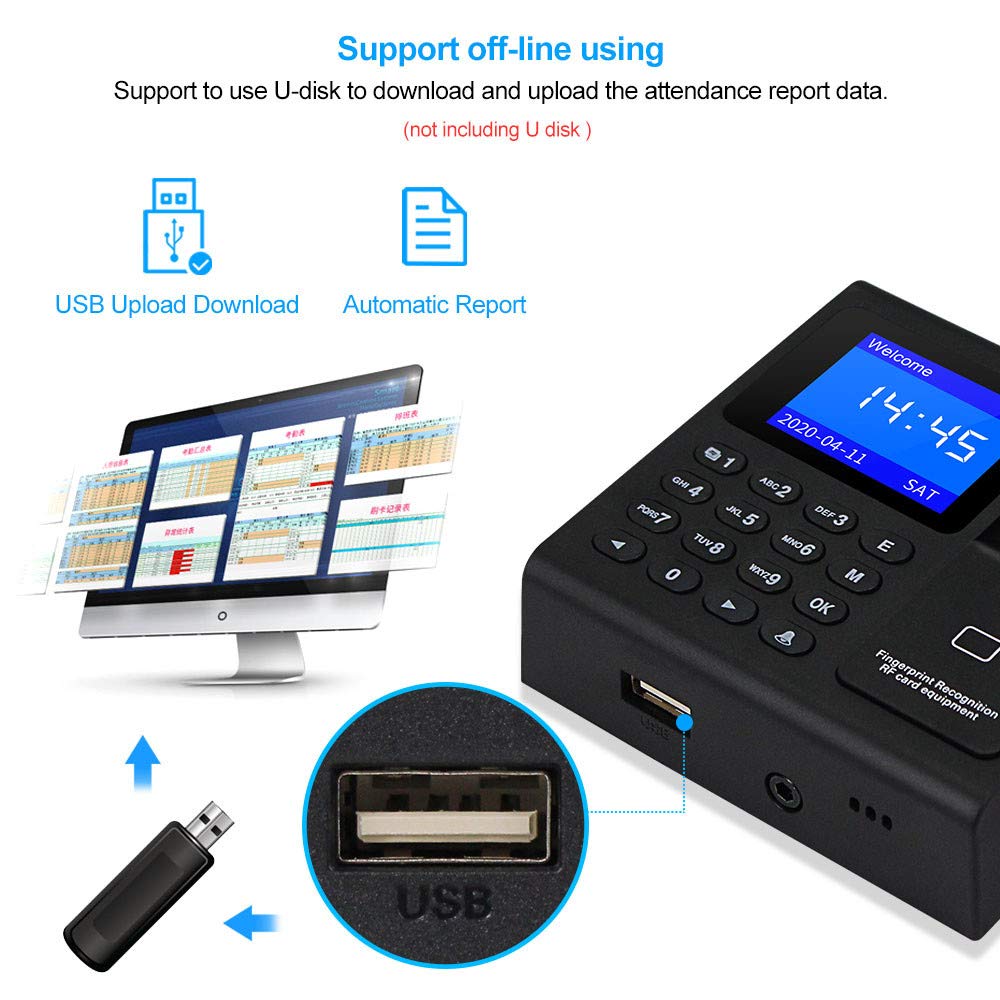

Support to download attendance reports in Excel format with U-disk. (The U disk have to be bought in extra.)

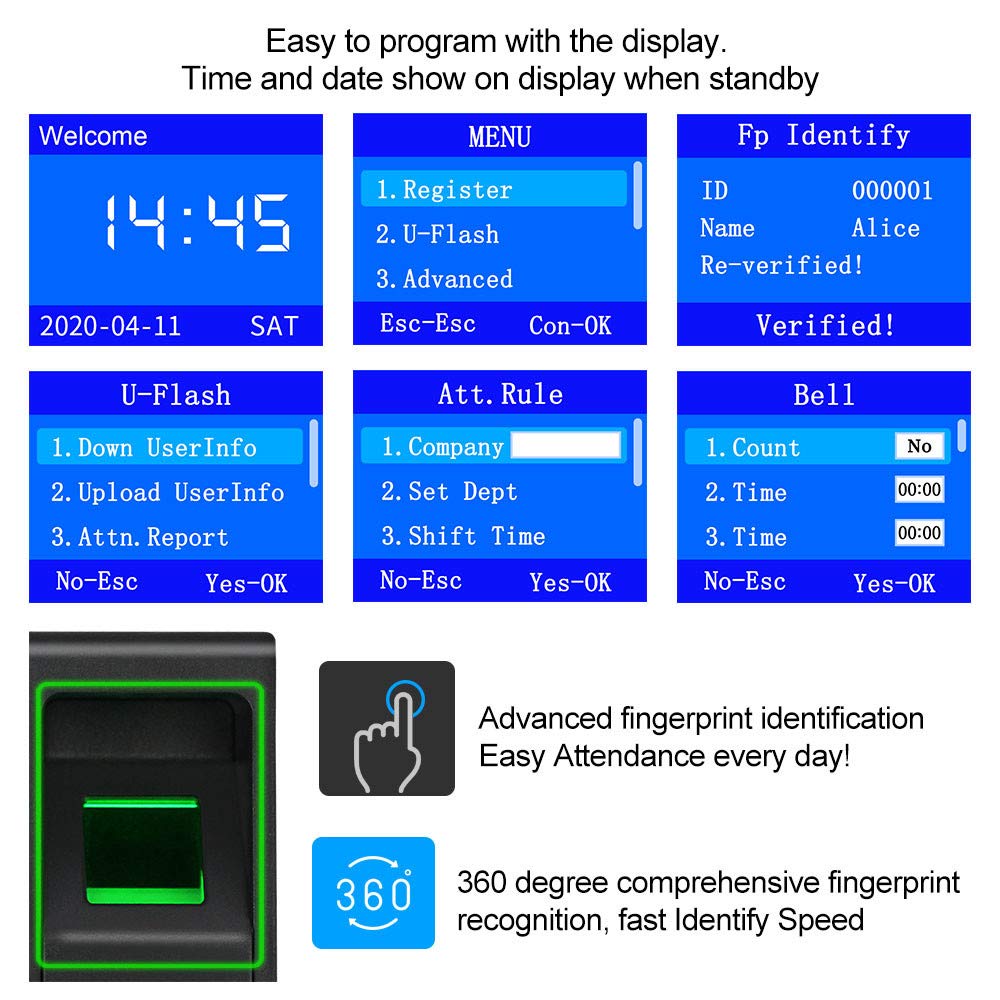

T9 input method editors with operation menu. Operation is convenient and simple.
Has Wiegand 26/34 input/output signal, relay output, door bell button.
Can be used as a standalone fingerprint time and attendance machine or standalone access control keypad.

Power Supply
Voltage: input: AC 110-260V / 50-60 HZ; output: DC12V / 3A
Time delay: 0 ~ 15 s adjustable
Set NC / NO outputs, can control various type of single electric lock.
Automatic protection function: It will protect automatically and no voltage output when short circuit happening in the circumferential circuit.
Size: 100*65*32mm

Magnetic Lock
Type: electric magnetic lock
Working voltage: DC12V, Current: 380mA~500mA
Holding force: 180kg / 350lbs
Working mode: NC mode, fail-safe type (Unlocked when power off, locked when power on)
Waterproof, can be installed outdoors
Installation: surface installed, don't need to punch a hole
Suitable for: wooden, metal, glass, PVC door, security door, etc.
Material: Aluminium Alloy
Size: 172*40*21mm/ 130*32*11mm

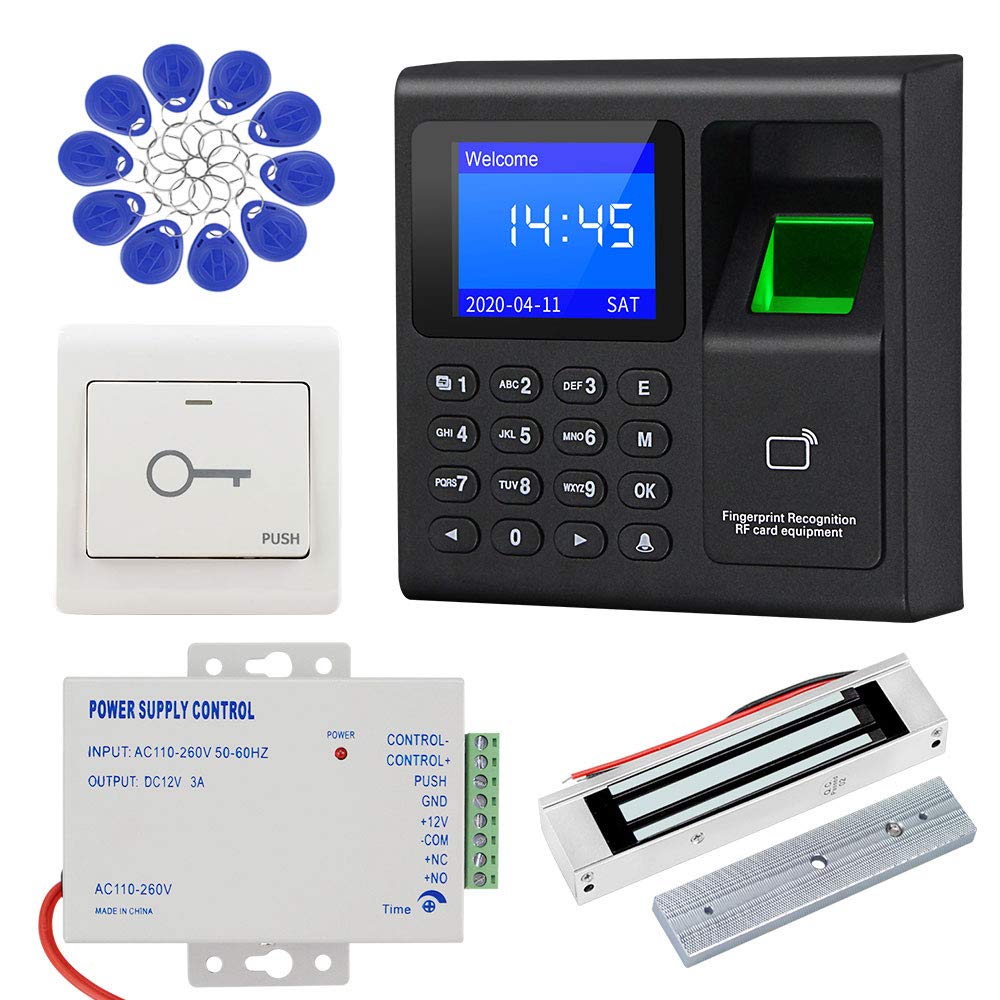

Package List:
1 * Fingerprint Access Controller
1 * Magnetic Lock
1 * Power Supply
1 * Switch Button
10 * RFID Keyfobs
1 * User Manual

EAN: 0192687557929

Package Dimensions: 9.2 x 6.5 x 5.3 inches
