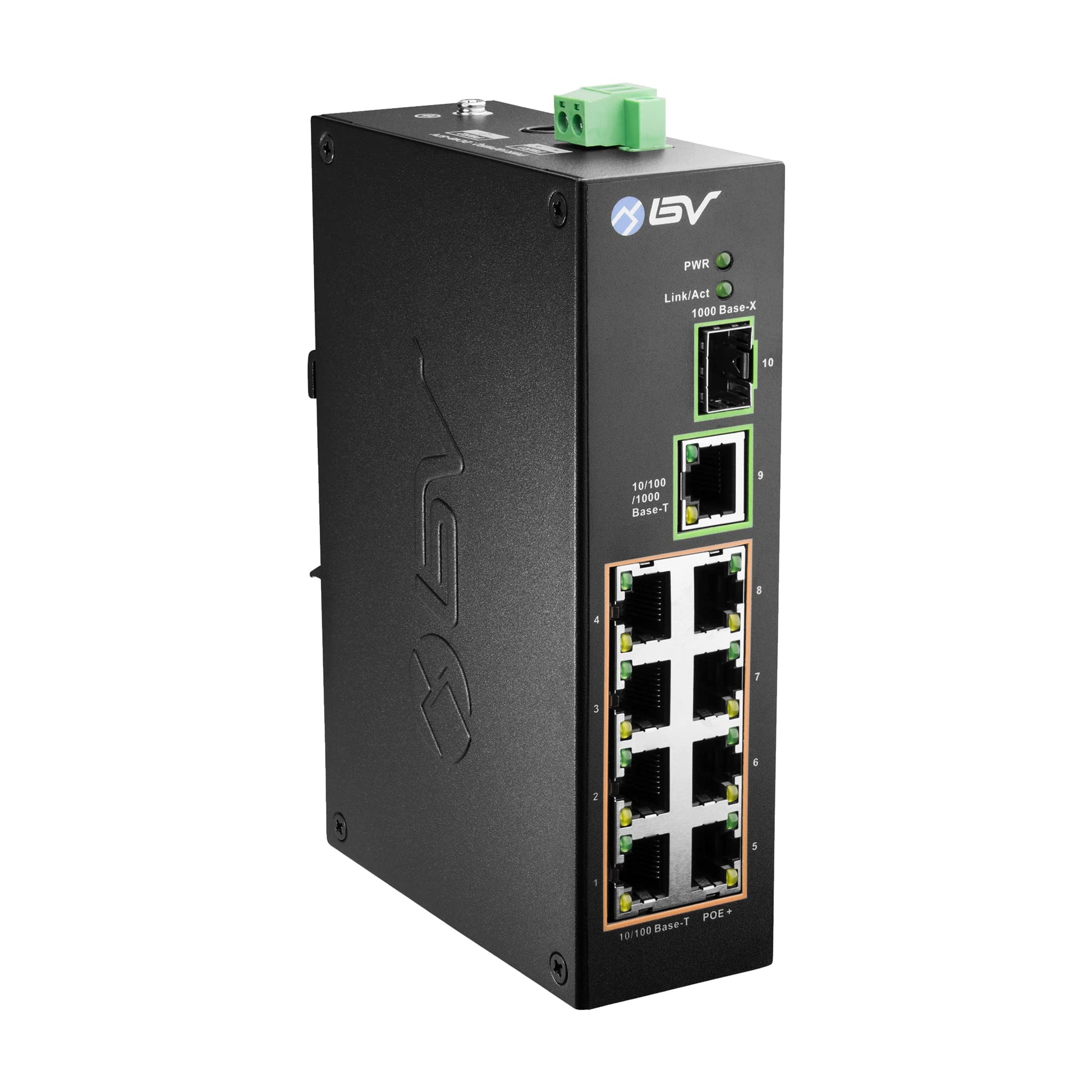

BV-Tech 8-Port Industrial PoE+ Switch (POE-SW802-DIN) | 2X 90W BT, Gigabit Uplink & SFP | PoE Watchdog & 250m Long Distance | Unmanaged DIN-Rail Power Over Ethernet for IP Cameras & APs

Brand: BV

Color: Black

Features:

• Ultra High-Power 90W BT Ports: Features 8 PoE ports, including two specialized 'Red Ports' (Port 1-2) that support IEEE802.3bt and Hi-PoE standards. These ports deliver up to 90W per port, making them ideal for high-power PTZ cameras and advanced wireless access points.
• Intelligent PoE Watchdog: Includes an innovative PoE Watchdog function that can be activated via a dial switch or the web interface. It automatically monitors port status and restarts failed ports to restore connections during IPC exceptions, significantly reducing manual maintenance costs.
• Extended 250m (820.21ft) Range: Supports long-distance PoE transmission up to 250 meters (820.21 ft). This mode is perfect for remote IP camera installations where standard Ethernet limits are exceeded, operating at a stable 10 Mbps bandwidth.
• Enhanced 8-Pin Power Delivery: Utilizes an 8-pin simultaneous power supply (1, 2, 4, 5 positive and 3, 6, 7, 8 negative) to reduce cable loss and increase loading capacity. This design improves compatibility with high-demand IPCs and ensures more efficient power distribution. Hardened Industrial Reliability: Built for extreme environments with a wide operating temperature range of -30 °C to +65 °C (-22 °F to +149 °F).

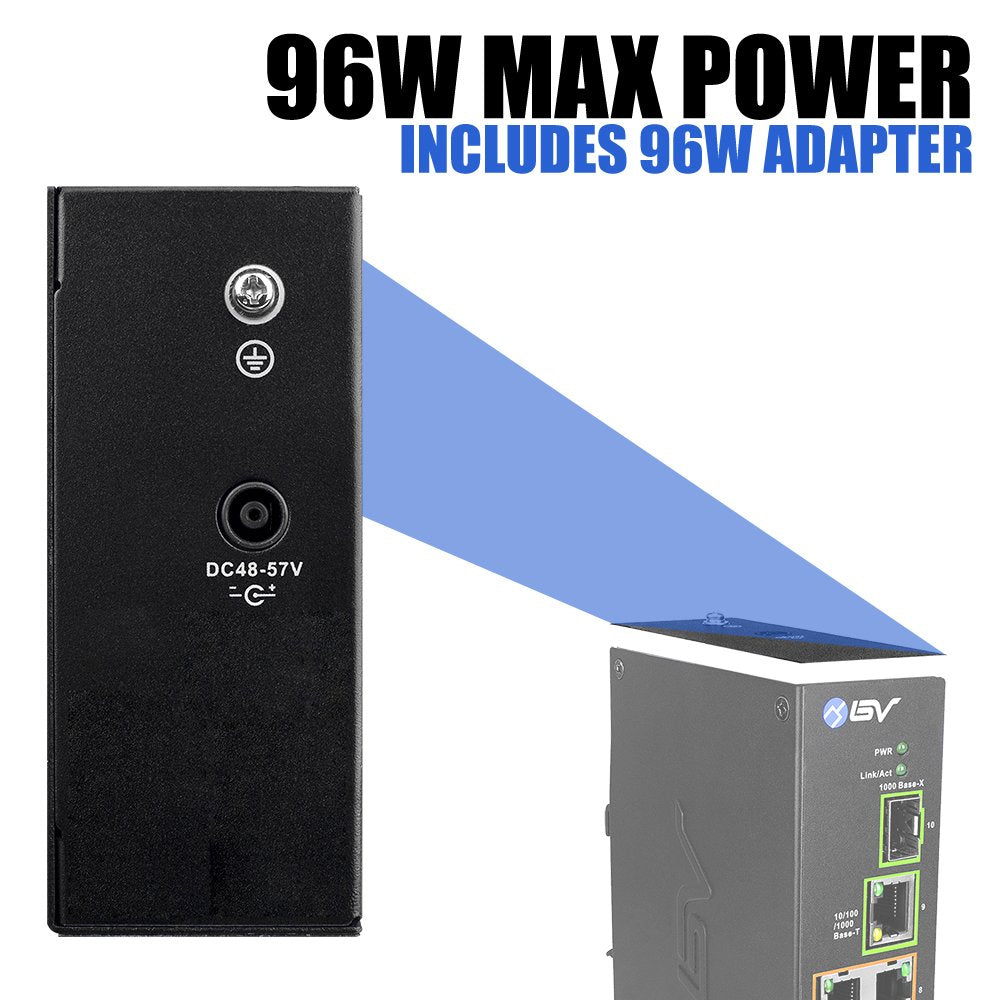

• The switch features robust lightning protection (4 kV) and ESD protection, supporting a total power budget of 96W for demanding industrial or outdoor applications.

Release Date: 07-09-2017

model number: POE-SW802-DIN

Part Number: POE-SW802-DIN

EAN: 0813076028577

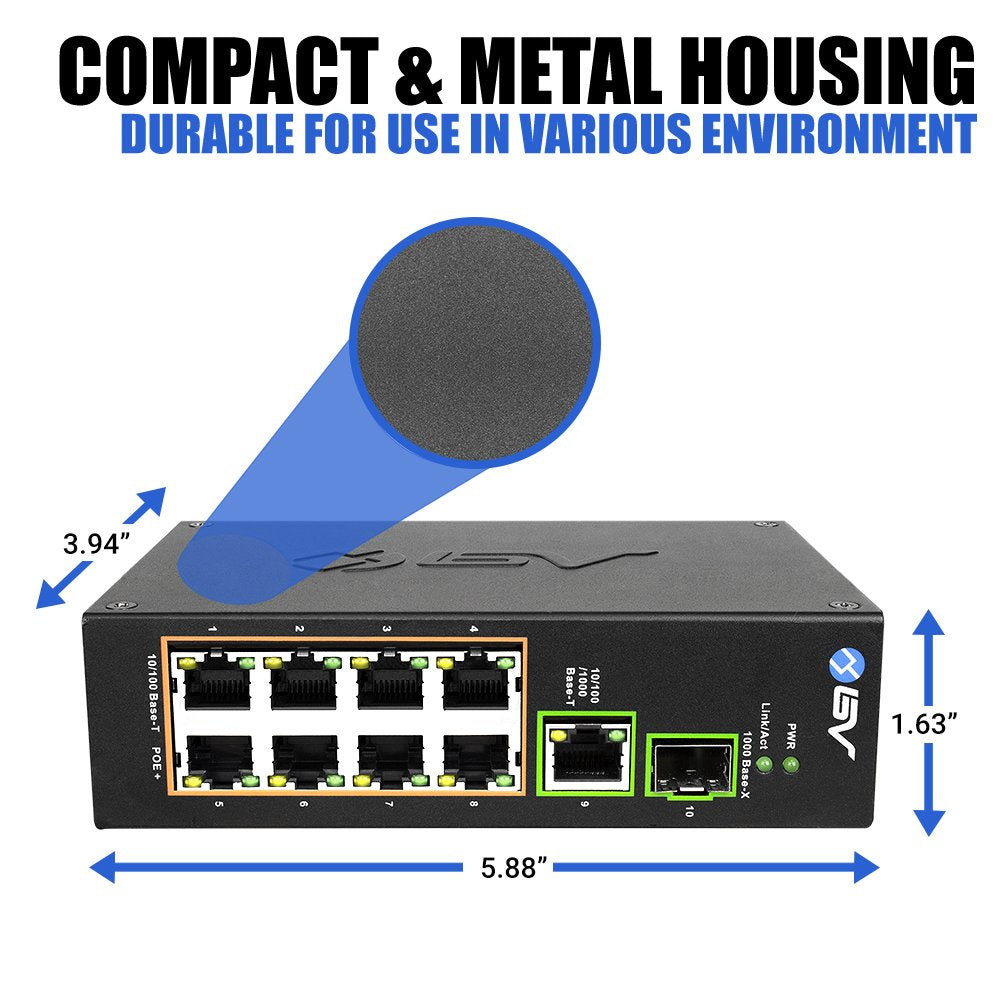

Package Dimensions: 10.4 x 9.5 x 3.0 inches
